Welcome to pyransame’s documentation!#

PYthon RAndom SAmpling for MEshes (pyransame) chooses random samples of points within cells of PyVista meshes.

A compressed example from Random Surface Sampling. First load packages and convert data units.

>>> import pyransame
>>> import pyvista as pv
>>> from pyvista import examples
>>> antarctica = examples.download_antarctica_velocity()
>>> antarctica.points /= 1000.  # convert to kilometers

Sample points on mesh using pyransame.

>>> points = antarctica.ransame.surface_dataset(500)

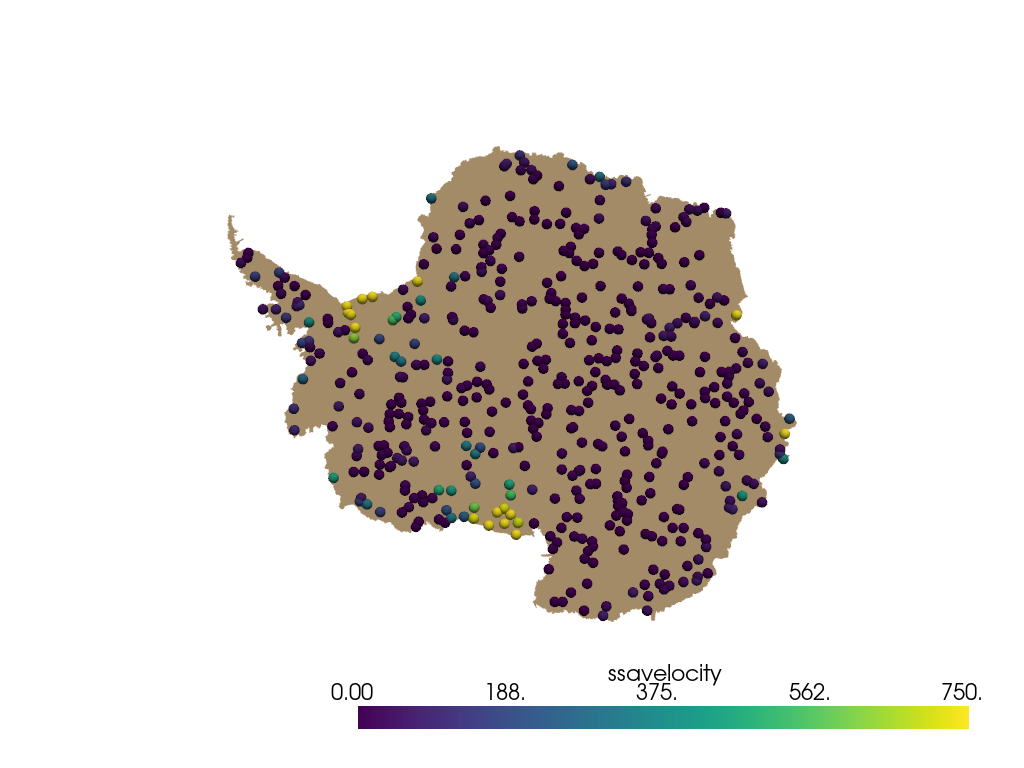

Plot points on mesh.

>>> pl = pv.Plotter()
>>> pl.add_mesh(antarctica, color='tan')
>>> spheres = points.glyph(geom=pv.Sphere(radius=50), scale=False, orient=False)
>>> pl.add_mesh(spheres, scalars="ssavelocity", clim=[0, 750])
>>> pl.view_xy()
>>> pl.show()
_images/index-3a8b5cc58d62dc74_00_00.png

PyVista dataset accessor#

On PyVista 0.48 and newer, pip install pyransame registers a ransame accessor on every PyVista dataset. PyVista discovers it through the pyvista.accessors entry point and imports the plugin lazily the first time mesh.ransame is used.

import pyvista as pv
from pyvista import examples

bunny = examples.download_bunny()
points = bunny.ransame.surface_points(500)
sampled = bunny.ransame.surface_dataset(500)

The accessor exposes a method for each top-level sampling function:

Accessor method

Equivalent function

mesh.ransame.surface_points

pyransame.random_surface_points()

mesh.ransame.surface_dataset

pyransame.random_surface_dataset()

mesh.ransame.volume_points

pyransame.random_volume_points()

mesh.ransame.volume_dataset

pyransame.random_volume_dataset()

mesh.ransame.line_points

pyransame.random_line_points()

mesh.ransame.line_dataset

pyransame.random_line_dataset()

mesh.ransame.vertex_points

pyransame.random_vertex_points()

mesh.ransame.vertex_dataset

pyransame.random_vertex_dataset()

mesh.ransame.points

dispatch by cell dimension

mesh.ransame.dataset

dispatch by cell dimension

points and dataset introspect mesh.distinct_cell_types to choose the sampler (vertex, line, surface, or volume). Meshes that carry cells of more than one dimension raise ValueError; pass kind="vertex" | "line" | "surface" | "volume" to force a specific sampler.

On older PyVista releases the package still installs and imports cleanly; only the mesh.ransame namespace is unavailable, and the top-level pyransame.random_* functions should be used instead.

For more usage see Examples.
